SM-960H   SM-960N   SM-940N   SM-490N

Special feature
  • Programmable : 3Pattern 20segments program control
  • RS485 transmission: Adoption of a computer communication function as a basic specification up to 1~255 ea, and free provision of a monitoring program(use of 20 ea) for demonstration
  • Convenient touch button
  • Multi Input : Thermocouple 8, Thermoscope resistor 2, DC voltage 2, Direct current 1, Sensor input of 14 kinds of humidity sensors, etc.
  • Power failure compensation function: In case of a power failure during program control, the value just before the power failure is memorized and operation is performed after recovery of the power failure.
  • Output current limitation: A function to limit the top/bottom of output current value
  • Slow Start: Protection of equipment by setting a current slow start to the device subject to damage of the equipment due to generation of excessive currents as soon as the power is turned ON
  • Remote: Control of this product under the same condition as other products by receiving SV values from other products
  • Heater disconnection alarm and sensor disconnection alarm
  • 10 kinds of alarms
  • Program control section alarm
    • Manual current output: Outputting of the same currents constantly by designating an arbitrary current value
  • Multi output : Electric current 2, Relay output  3, SSR output 1

Power Supply
  • 100~240AC(power range +10%)

Input
  • Thermocouple : K, J, R, T, C, E, S
  • Thermoscope resistor : Pt100, JPT
  • Direct current Electric current , voltage : 4-20mA, 1-5V, 0-10V
  • Humidity Sensor input

OUT1 | Main Output
  • A relay output
    · Contact capacity : 250V AC5A, 30V DC5A
    · Contact constituent : 1C
    · Control system : PID control(setting up direction/inverse), ON/OFF control(setting up direction/inverse)

OUT2 | Auxiliary outputting based on alarms
  • A relay output
    · Contact capacity : 250V AC2A, 30V DC2A
    · Contact constituent : 1A
    · Control system : ON/OFF control(setting up direction/inverse, Operated separately from OUT1)
    · 10 kinds of alarm functions

OUT3 | Auxiliary outputting based on alarms
  • A relay output    · Same as OUT2
  • 2 kinds of section alarms

OUT4 | Electric current Main output
  • SSR output
  • Electric current output   · DC4-20mA Electric current, 1~5V Power control(setting up direction/inverse, Solw start, with a built in limit function of output upper and lower)
  • Transmission output    · DC4-20mA transmission output(SV transmission output, PV transmission output)

OUT5 | Electric current auxiliary output
  • Electric current output  · DC4-20mA Electric current, 1~5V Power control(setting up direction/inverse, Solw start, with a built in limit function of output upper and lower)
  • Transmission output  · DC4-20mA transmission output(SV transmission output, PV transmission output)
  • COPY control: Controlled in the same way as the current control of output 4

SIZE
  • Dimensions : W96×H96×L107
  • Panel size : W92×H92



Special feature
  • Conveniently available program control(3Pattern 20segments program control)
  • RS485 transmission: Adoption of a computer communication function as a basic specification up to 1~255 ea, and free provision of a monitoring program(use of 20 ea) for demonstration
  • Multi Input : Thermocouple 5, Thermoscope resistor 1, DC voltage 2, Direct current 1, Sensor input of 14 kinds of humidity sensors, etc.
  • Power failure compensation function : In case of a power failure during program control, the value just before the power failure is memorized and operation is performed after recovery of the power failure.
  • Output current limitation: A function to limit the top/bottom of output current value
  • Slow Start: Protection of equipment by setting a current slow start to the device subject to damage of the equipment due to generation of excessive currents as soon as the power is turned ON when using a current output
  • Remote : Control of this product under the same condition as other products by receiving SV values from other products
  • 10 kinds of alarm functions
  • Manual current output : Outputting of currents continuously by designating an arbitrary currnet value
  • 10 kinds of alarms
  • Multi output : Electric current 2, Relay output  3, SSR output 1

Power Supply
  • 100~240AC(power range +10%)

Input
  • Thermocouple : K, J, R, T, C
  • Thermoscope resistor : DIN PT
  • Direct currentElectric current , voltage : 4-20mA, 1-5V, 0-10V
  • Humidity Sensor input

OUT1 | Main output
  • A relay output
    · Contact capacity : 250V AC5A, 30V DC5A
    · Contact constituent : 1C
    · Control system : PID Control(setting up direction/inverse ), ON/OFF Control(setting up direction/inverse )

OUT2 | Auxiliary outputting based on alarms
  • A relay output
    · Contact capacity : 250V AC2A, 30V DC2A
    · Contact composition : 1A
    · Control method : ON/OFF control(setting up direction/inverse,Operated separately from OUT1)
    · 10 kinds of alarm outputs

OUT3 | Auxiliary outputting based on alarms
  • A relay output    · Same as OUT2

OUT4 | Electric current Main output
  • SSR OUT
  • Electric current output   · DC4-20mA Electric current , 1~5V Power control(setting up direction/inverse, Solw start, with a built in limit function of output upper and lower )
  • Transmission output    · DC4-20mA transmission output(SV transmission output, PV transmission output)

OUT5 | Electric current auxiliary output
  • Electric current output  · DC4-20mA Electric current, 1~5V Power control (setting up direction/inverse, Solw start, with a built in limit function of output upper and lower )
  • Transmission output   · DC4-20mA transmission output(SV transmission output, PV transmission output)
  • COPY control : Controlled in the same way as the current control of output 4

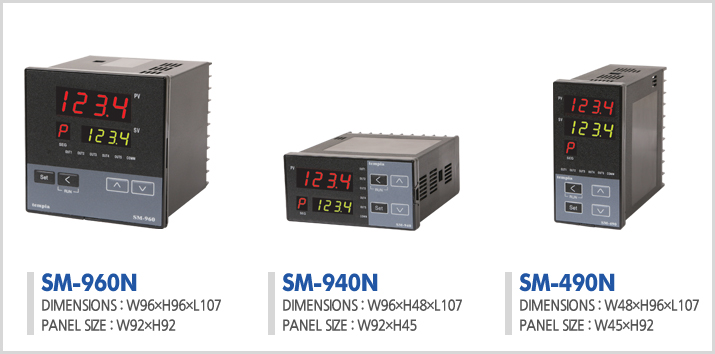

SIZE
  • SM-960N   ·Dimensions : W96×H96×L107 ·Panel size : W92×H92
  • SM-940N   ·Dimensions : W96×H48×L107 ·Panel size : W92×H45
  • SM-490N   ·Dimensions : W48×H96×L107 ·Panel size : W45×H92
